Beautiful shape, small size, light weight, low noise, low power consumption, high efficiency, no dust pollution, easy to install and move, space-saving, can be installed between the raw material hopper and the storage hopper on the production line directly, durable, direction of the discharge hole can be adjusted at will, fine materials can be discharged automatically, can operate automatically, high screening precision, large output, widely applicable.
The mesh will not be blocked, the powder does not fly, fast feeding speed, no material accumulation, obvious effect and the finest filtration mesh is up to 400mesh.
Unique screen structure, convenient and swift to install the screen, only 3-5 minutes needed, simple to operate and easy to clean.
No mechanical motion, easy maintenance, can be installed and used with a single layer or multiple layers; all the parts contacting with materials are made of stainless steel, which is clean and hygeian.

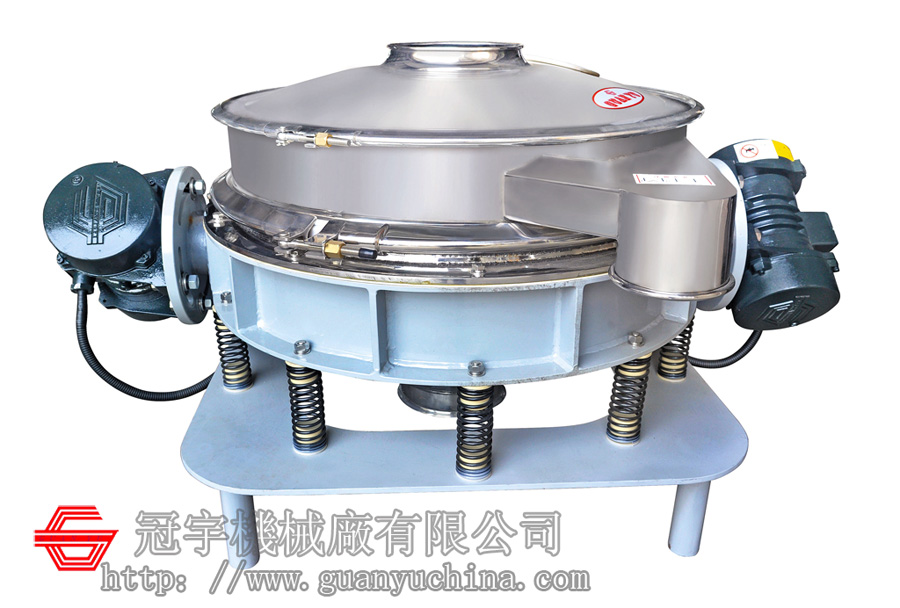

Straight-fall type vibrating screen adopts two vibrating motors making reverse rotational motion at constant speed, when the motor and the eccentric block on the motor shaft have different installation angles, directional shock excitation couples changing periodically will be produced, and the rotational direction of the material will therefore differ.

Optimum Efficiency of Material Motion: Eccentric angle: 90 °, motor angle 45 ° ~ 75 °, the material makes projectile motion and can be screened and graded, achieving the best results.

Motor

Shock-proof

Rubber Stripe

Handling Capacity: 600 - 1,000kg /1 h (estimated with 60 mesh)

Is there any damage of the machine during delivery?

Check whether the model and specifications of the product are in line with what you order and whether the power source equipped is consistent with what is labeled on the nameplate (voltage error± 10).

Before operation, check whether all the fastening parts are loose or not and whether the power switch (knife switch not allowed) and ground lead installation contact well? It is strictly prohibited to have the motor run with default phase.

This machine should keep a distance of at least 500mm with the surrounding objects and be installed stably and reliably.

When two vibrating motors are connected, the operating directions of the two must be reversed.

Phase angles of the product are set before delivery, if the using effect is not good, please adjust by referring to its working principle.

Cut off the power when not in use. It is prohibited to rinse the motor when cleaning the machine to prevent electric leakage.

Keep the screen clean; use corresponding detergent according to the filter material; meanwhile it is prohibited to crash the screen with shape or hard objects to prevent damage.

Motor angle must not exceed 75 °, so as to avoid excessive motor exciting force and damage to the machine structure.

The machine is suitable for continuous and uniform feeding, and the height of feeding from the screen should not be higher than 150mm or external cushioning device should not be installed. It will achieve the best effect when the screen can sieve the material fed timely.

Warranty period of this machine is 1 year under conditions of normal use. Within the warranty period, if any abnormal sound is found during use, please stop to check the machine immediately, if it cannot be solved, please contact us timely (Never demount the motor by yourself, or we shall not provide the warranty service).

It is prohibited to rinse the motor when cleaning the machine to prevent electric leakage.
